Quality Back Supports

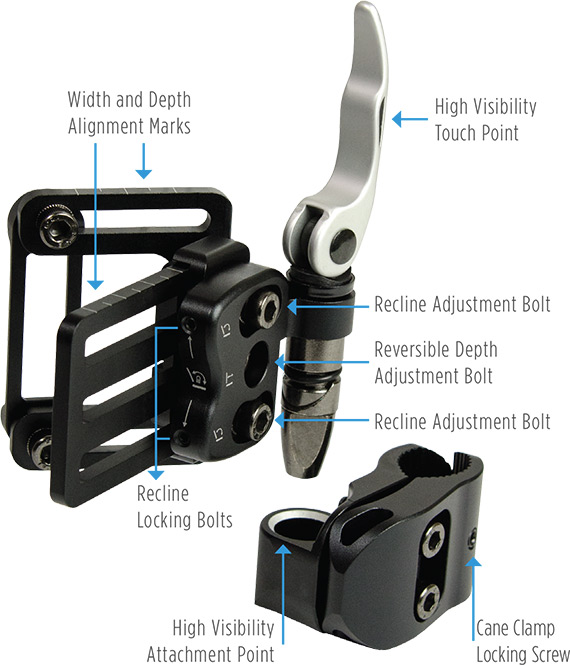

Compass 4 Hardware
The all new, patented Compass 4 Hardware is stronger, lighter, and now independently adjustable in depth and angle of recline. Compass 4 Hardware is easier to adjust and has a wider range of motion than leading competitor hardware.
U.S. Patent No. 7,104,610 and 7,891,739
Features
Fit

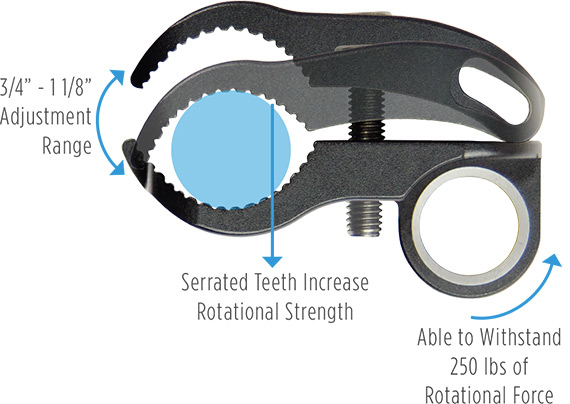

CANE CLAMP
Fits expanded size range of 3/4", 7/8", 1", and 1 1/8" diameter tubing, and the clamp only requires 1 1/2" of space on each cane for mounting.
INDUSTRY LEADING ROTATIONAL CLAMP STRENGTH
Compass 4 = 250 lbs
Previous Compass = 150 lbs
Leading Competitor = 150 - 200 lbs
Adjustability

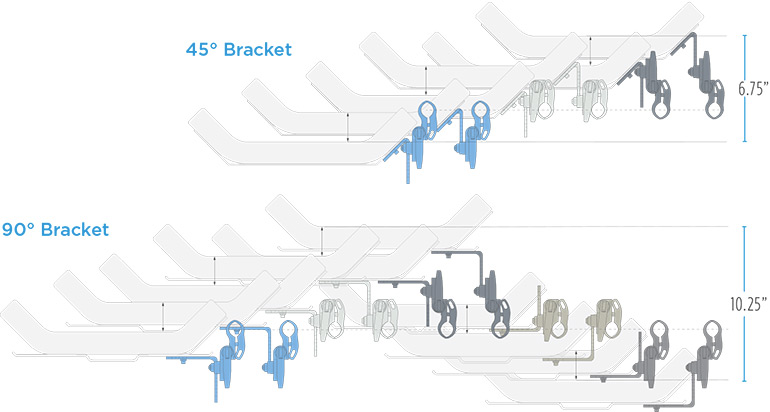

RANGE OF DEPTH ADJUSTABILITY
| Standard Configuration (as shipped) | |
| Flipped Cane Clamp | |
| Flipped Cane Clamp & Angle/Depth Bracket | |
| Flipped 90° Bracket & Cane Clamp | |
| Flipped 90° Bracket | |
--- | Cane Tube Center Line |
Each configuration has 2" of depth adjustment.
Showing depth range from center of cane clamp to the support surface (1.5" thick).

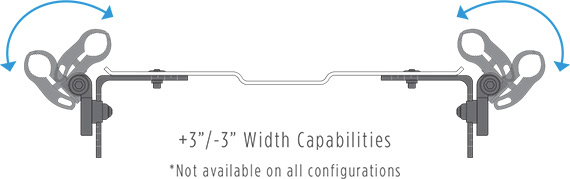

WIDTH ADJUSTABILITY

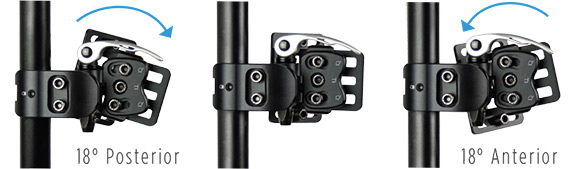

ANGLE ADJUSTABILITY

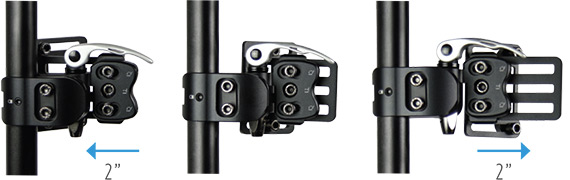

DEPTH ADJUSTABILITY

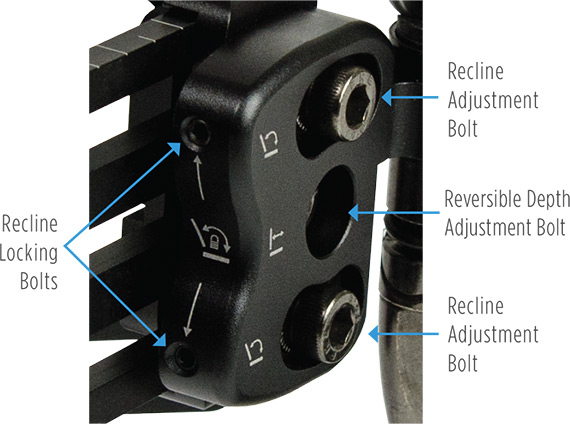

ISOLATED DEPTH & RECLINE ADJUSTABILITY
Reversible depth adjustment bolt allows for easy access even in the flipped cane clamp configurations.

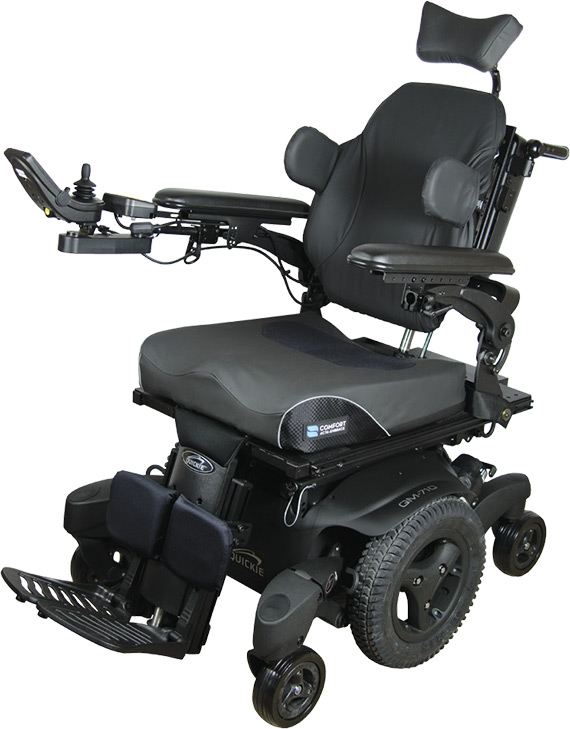

Compass Power Mount Bracket
Easy Installation
8" height adjustability while user is in chair
Integrates every Acta-Series back support with the following power provider:
- Quantum with TRU-Balance 3 Power Seating System
(PMB-QUANTUM) - Permobil with Corpus 3G Power Seating System
(PMB-PERMOBIL) - Quickie with 3.7 Power Seating System
(PMB-QUICKIE) - Rovi with Motion Concepts Power Seating System
(PMB-ROVI)

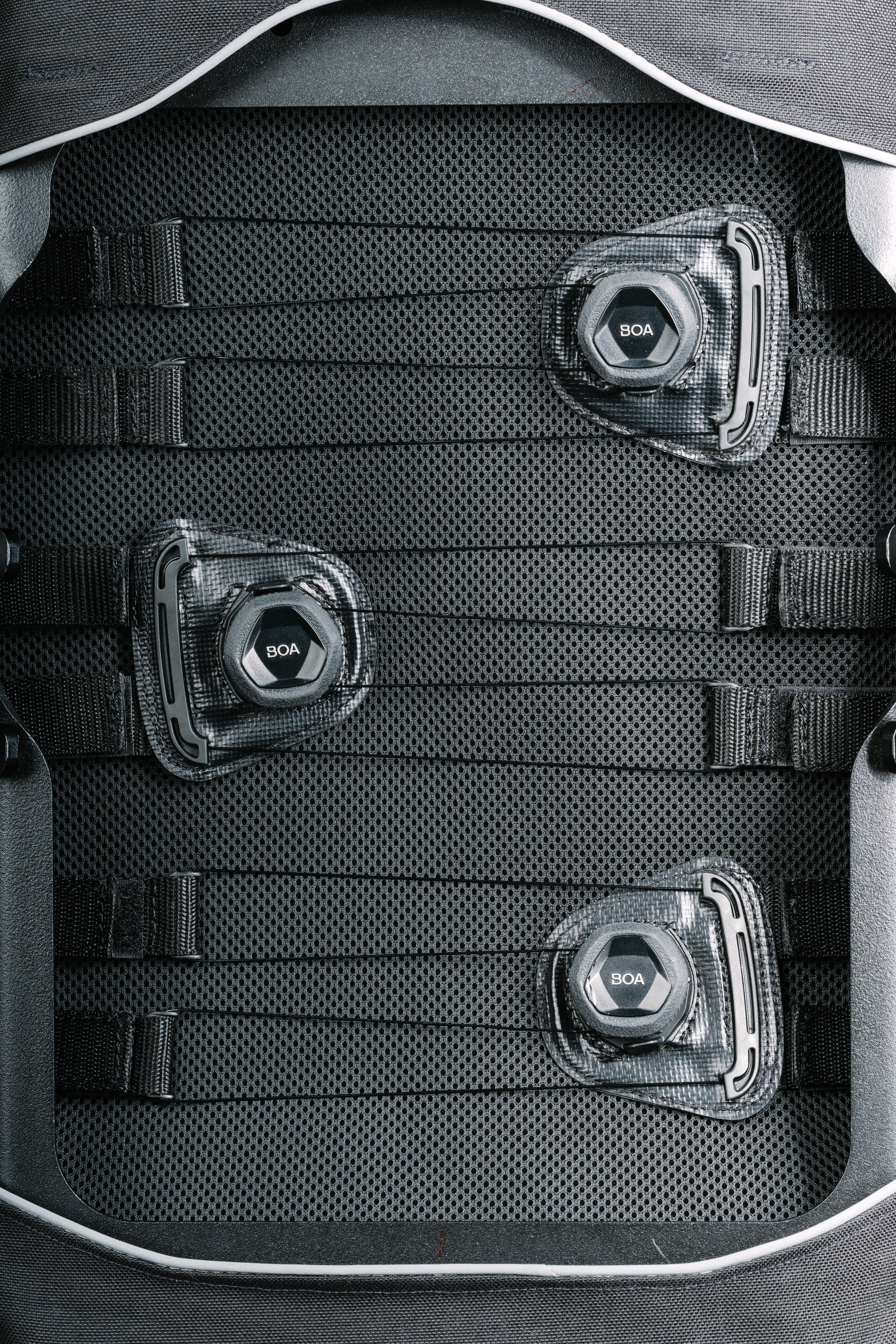

The Boa Advantage
MICRO-ADJUSTABLE
Each click of the Boa reel offers one millimeter of precision fit adjusment.
SECURE
Once the Boa reel is locked into place, it stays that way.
CUSTOMIZABLE FIT
Boa delivers smooth, even adjustment with no pressure points for maximum comfort.
CONVENIENT
The Boa closure system offers an adjustment solution free of messy straps, ratchets, and fasteners.

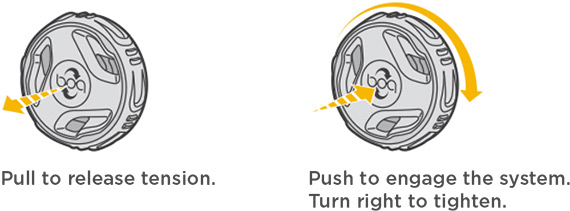

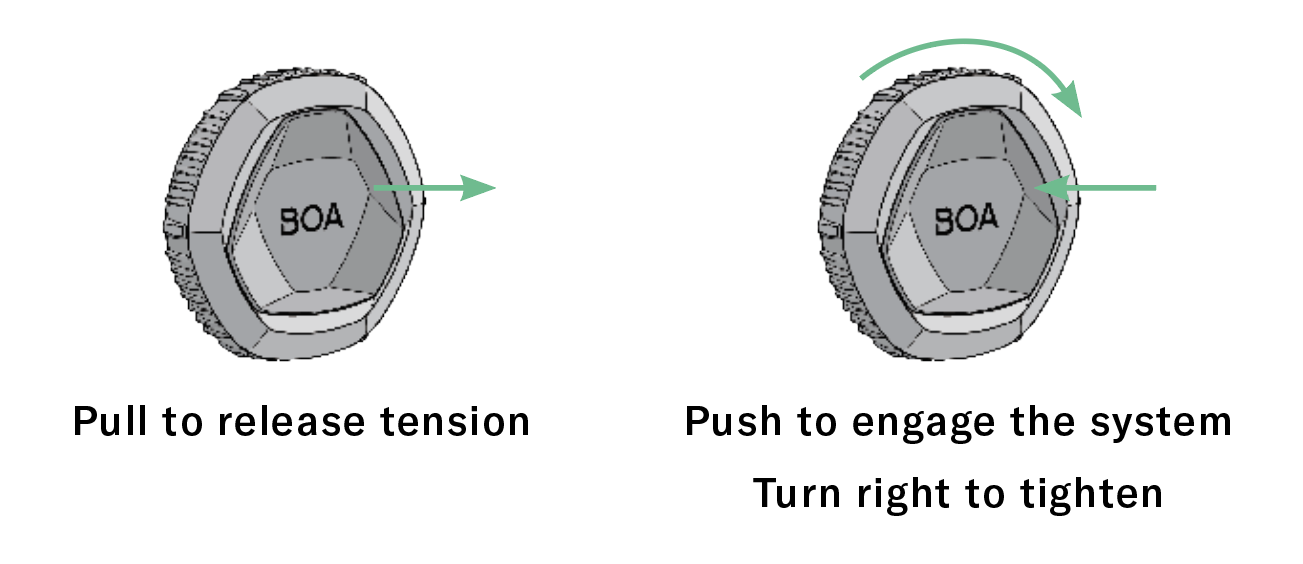

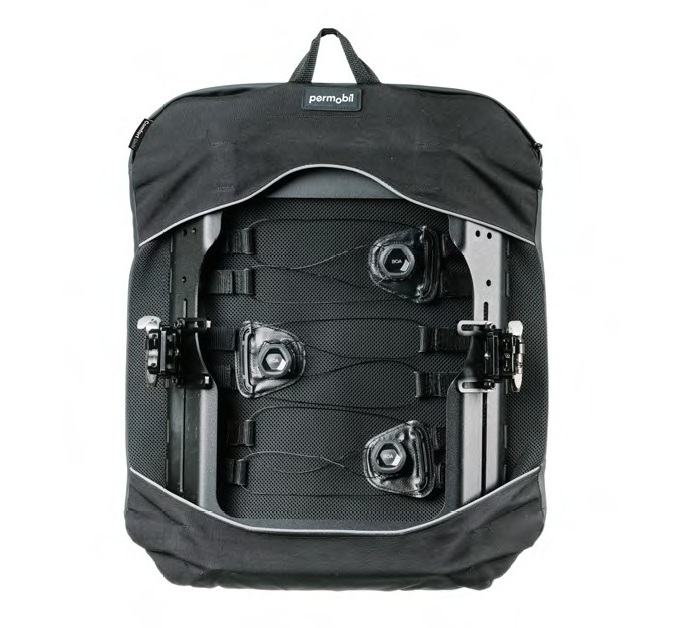

The Boa Reel

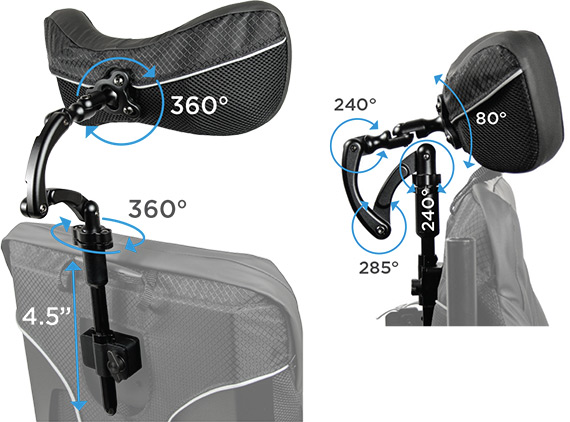

BodiLink Head Support Pads & Hardware
The new pad shape features top and bottom curvature for neck clearance and maximum support and comfort even while pad is rotated 180°.
New BodiLink hardware features 5 link adjustability resulting in a nearly unlimited range of motion.
Post-pivot joint allows more offset capabilities & depth adjustment with virtually no dead zones.

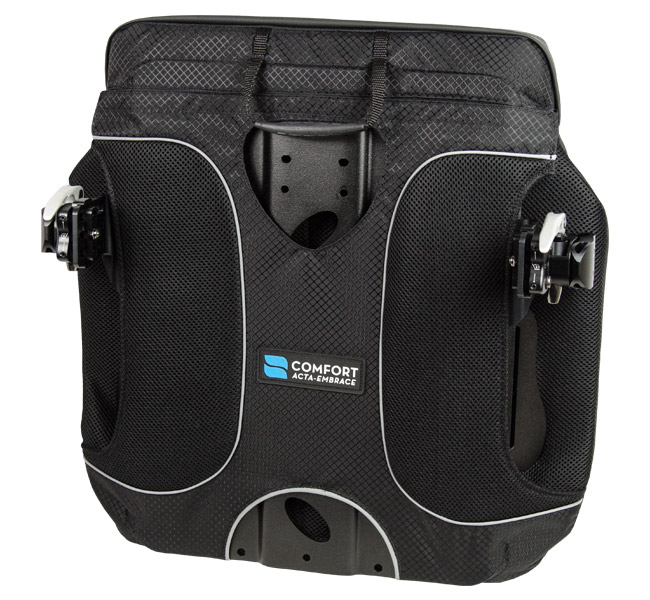

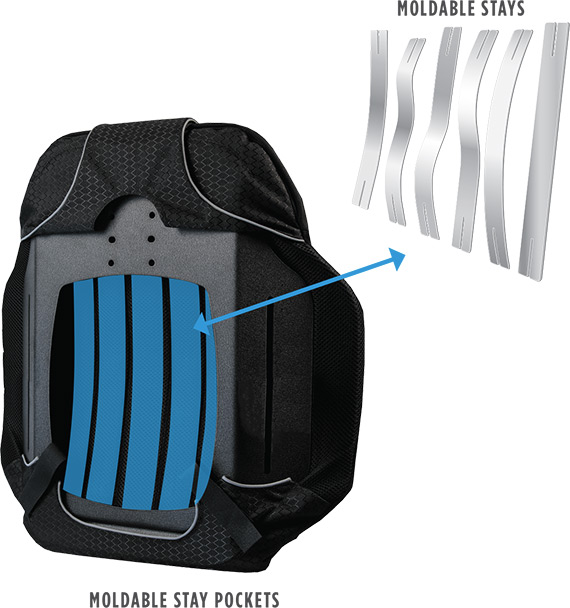

Moldable Support
U.S. Patent No. 6,733,074
Standard on all Acta-Back and Acta-Embrace back supports, moldable stays allow for easy on- the-spot customization to accommodate a variety of spinal curvatures. Stays are located inside the zippered cover, behind the foam cushion surface, yet remain accessible while the user is seated.
Moldable stays allow for continual support of changing conditions and can easily accommodate rotation with offset placement well before trying to rotate the back support.
Mild to aggressive support can be achieved anywhere from the thoracic down to the lower- lumbar region. Use the stays to encourage proper positioning of the pelvis through input to the lower lumbar region.
Stays prevent high peak pressures by providing additional cushion contact with the user unlike traditional planar back supports. The moldable stays create a support surface unique to the individual.
Each back support comes standard with 2 moldable stays for multiple set up options.

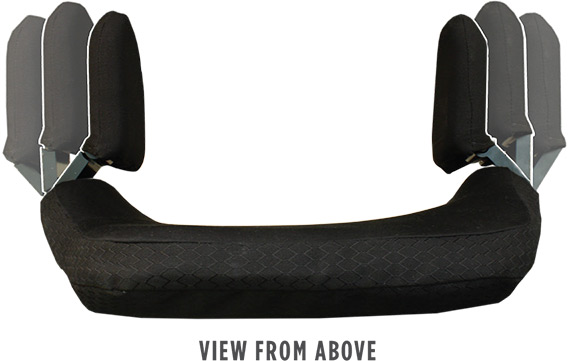

Lateral Trunk Supports for LTS Back Supports
Lateral trunk supports are constructed with moldable stainless steel and protective foam.
Maximum distance between two lateral supports is equal to the width of the wheelchair. Minimum distance between two lateral supports is 8” less than the width of the wheelchair.
Lateral trunk supports have up to 8" of width adjustment (4" per pad) and 1.5" depth adjustment each.
Lateral trunk supports are available in four different sizes: extra small, small, medium, and large.
Rigid lateral hardware comes standard.

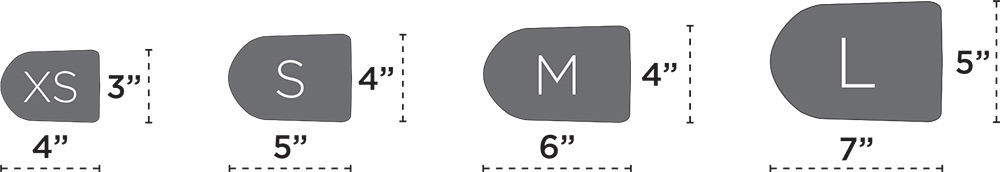

LATERAL TRUNK SUPPORT DIMENSIONS
