Acta-Back® Contour

HCPCS Coding: E2620/E2621

  • Patented moldable aluminum stays conform and support the user’s back.
  • Complete with patented Compass® or Power Mount Hardware.
  • Durable aluminum shell comes with head support holes.
  • Aluminum shell comes with lateral trunk support hardware slots.
  • Three layer foam construction, including comfortable Visco surface layer.
  • BodiLink™ Head Support (E0955) and Hardware (E1028) are optional and available.
  • Back design offers inclusive lower thoracic trunk supports providing great pelvic support while not limiting the user’s upper thoracic range of motion.
  • Comes standard with moldable stays.
Configure & Add to Cart
Acta-Back Contour

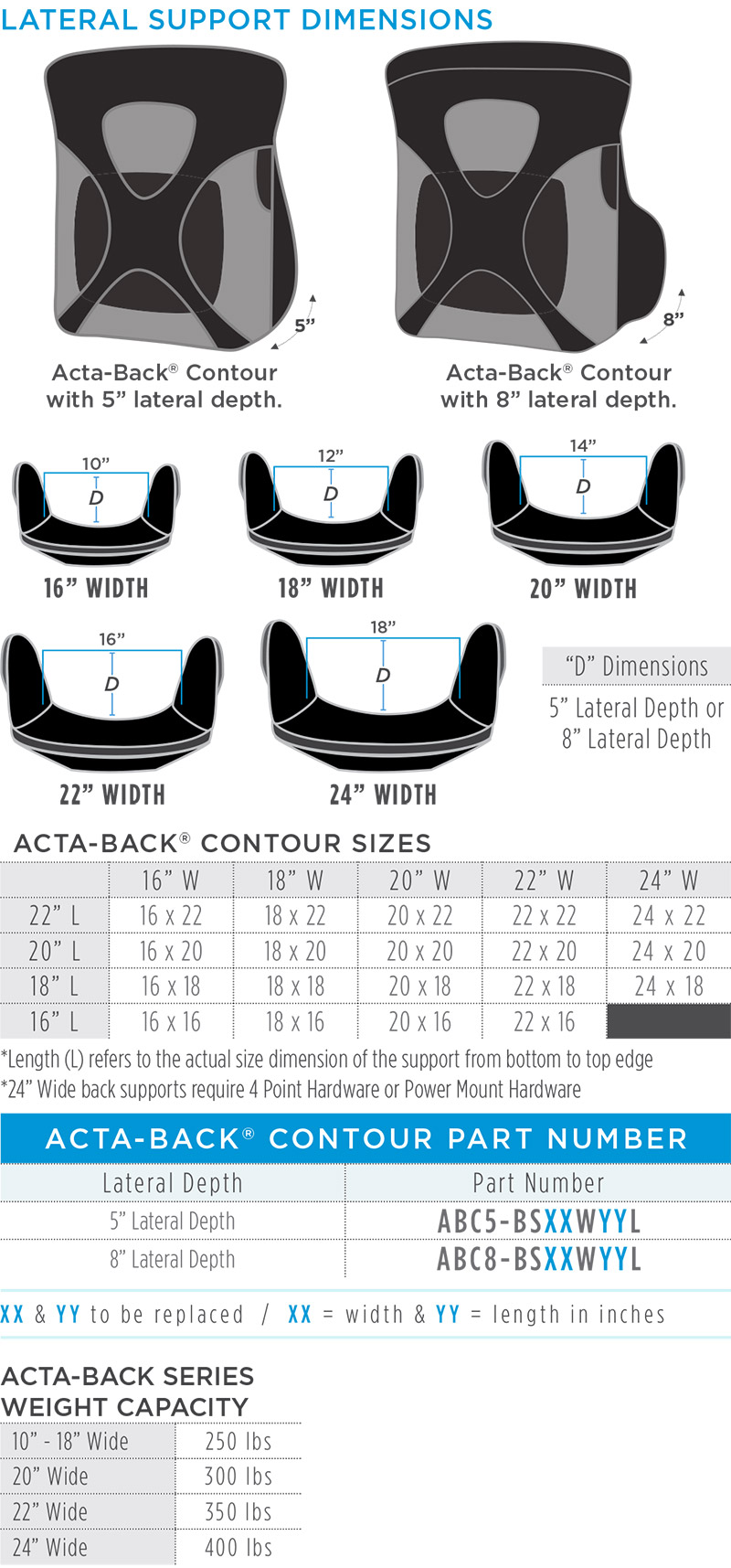

Acta-Contour Dimensions

COMPASS 4 HARDWARE

  • Fully adjustable for height, depth, and angle of recline.
  • Requires only 1.5" of space on each cane for mounting purposes.
  • All adjustments can be made while the user is seated in the wheelchair, eliminating the need for multiple transfers during the fitting process.
  • Quick-release feature allows backrest to be removed vertically within seconds.
  • Hardware may be installed within minutes and fits 3/4", 7/8", and 1" tubing.
  • Positive locking feature for angle rotation.
Compass HardwareNote: hardware appearance my vary depending on back support size and style.
Compass Hardware

4 POINT

  • 1. Cane mount fits 5 different cane diameters. Shorter strap that comes standard fits 3/4”, 7/8” & 1” while longer strap provided (not pictured) fits 1 1/8” & 1 1/4”.
  • 2. Slot lock nut system prevents unwanted rotation.
  • 3. Single design allows for easy adjustment with minimal fasteners.
  • 4. Single slot design uses very little space, allowing other hardware to mount.
  • 5. Minimal fasteners, but strong design.
  • 6. Track systems prevent rotation, allowing features to nest together for additional stability.
  • 7. Combination of aluminum and steel for ultralight hardware.

COMPASS POWER MOUNT BRACKET

Easy Installation
8" height adjustability while user is in chair
Integrates every Acta-Series back support with the following power provider:
  • Quantum with TRU-Balance 3 Power Seating System
    (PMB-QUANTUM)
  • Permobil with Corpus 3G Power Seating System
    (PMB-PERMOBIL)
  • Quickie with 3.7 Power Seating System
    (PMB-QUICKIE)
  • Rovi with Motion Concepts Power Seating System
    (PMB-ROVI)
