Acta-Relief™

HCPCS Coding: E2615

  • Features flexible, adjustable straps that allow this product to offset the center of pressure and better remove pressure points from the spine.
  • This allows for a more aggressive molding to each individual patient's natural anatomy to support many seating positions ranging from upright seating to a severely rotated back.
  • Equipped with an oversized aluminum shell cut-out to allow deeper immersion into the back.
  • Thick Visco surface layer adds extra comfort and support by contouring to the user's body.
  • Patent Pending
Mobility Management Best Picks 2016
Mobility Management Best Picks award winner 2016
Configure & Add to Cart
Acta-Relief

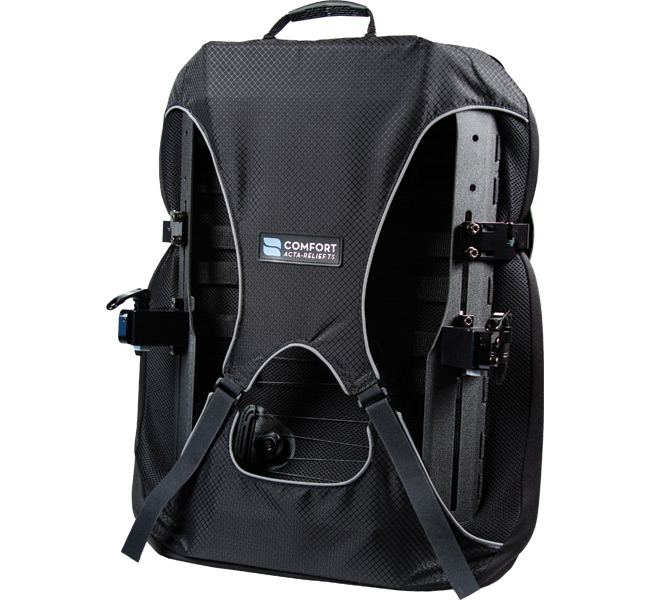

Front View
Front View

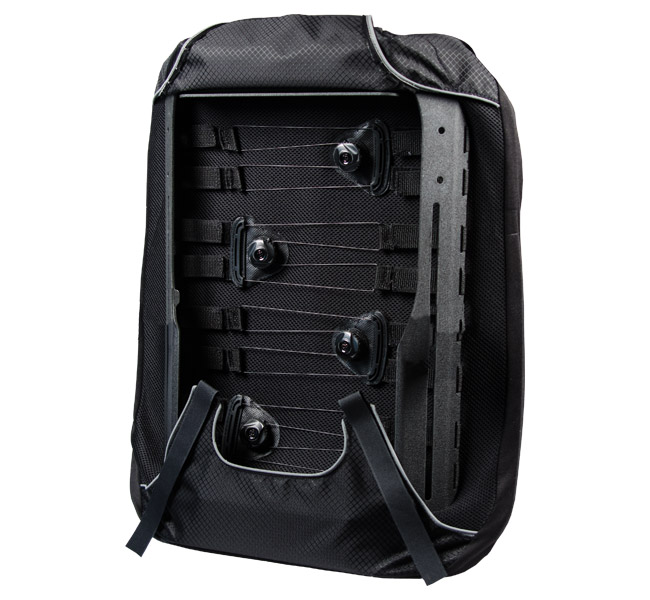

Shell View
Shell View

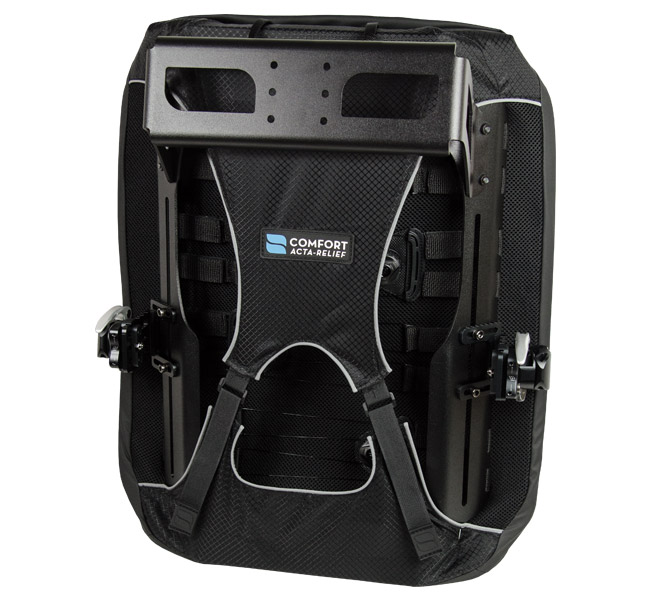

With Headrest Mounting Bracket
With Headrest Mounting Bracket
overlay
Introducing the Acta-Relief
Introducing the Acta-Relief
overlay
Compass Hardware Installation
Compass Hardware Installation
  • Designed to effortlessly adjust, the Boa® closure system brings comfort and support to the lower and upper thoracic regions.
  • With the Boa® reel and cable system, equal and stable pressure distribution is accomplished in an “off the shelf” back design.
  • The open back frame design gives the ability to off-load the pressure typically seen on spinal deformities through the back frame opening.
  • BodiLink™ Head Support (E0955) and Hardware (E1028) are optional and available.
  • Available head support attaches through the use of a bracket giving the necessary clearances to accommodate more aggressive deformities.
  • Lateral trunk supports (E0956) are optional and available.

COMPASS 4 HARDWARE

  • Fully adjustable for height, depth, and angle of recline.
  • Requires only 1.5" of space on each cane for mounting purposes.
  • All adjustments can be made while the user is seated in the wheelchair, eliminating the need for multiple transfers during the fitting process.
  • Quick-release feature allows backrest to be removed vertically within seconds.
  • Hardware may be installed within minutes and fits 3/4", 7/8", and 1" tubing.
  • Positive locking feature for angle rotation.
Compass HardwareNote: hardware appearance my vary depending on back support size and style.
Compass Hardware

4 POINT

  • 1. Cane mount fits 5 different cane diameters. Shorter strap that comes standard fits 3/4”, 7/8” & 1” while longer strap provided (not pictured) fits 1 1/8” & 1 1/4”.
  • 2. Slot lock nut system prevents unwanted rotation.
  • 3. Single design allows for easy adjustment with minimal fasteners.
  • 4. Single slot design uses very little space, allowing other hardware to mount.
  • 5. Minimal fasteners, but strong design.
  • 6. Track systems prevent rotation, allowing features to nest together for additional stability.
  • 7. Combination of aluminum and steel for ultralight hardware.

COMPASS POWER MOUNT BRACKET

Easy Installation
8" height adjustability while user is in chair
Integrates every Acta-Series back support with the following power provider:
  • Quantum with TRU-Balance 3 Power Seating System
    (PMB-QUANTUM)
  • Permobil with Corpus 3G Power Seating System
    (PMB-PERMOBIL)
  • Quickie with 3.7 Power Seating System
    (PMB-QUICKIE)
  • Rovi with Motion Concepts Power Seating System
    (PMB-ROVI)
BOA System

THE BOA ADVANTAGE

MICRO-ADJUSTABLE:

Each click of the Boa reel offers one millimeter of precision fit adjustment.

SECURE:

Once the Boa reel is locked into place, it stays that way.

CUSTOMIZABLE FIT:

Boa delivers smooth, even adjustment without pressure points for maximum comfort.

CONVENIENT:

The Boa closure system offers an adjustment solution free of messy straps, ratchets, and fasteners.

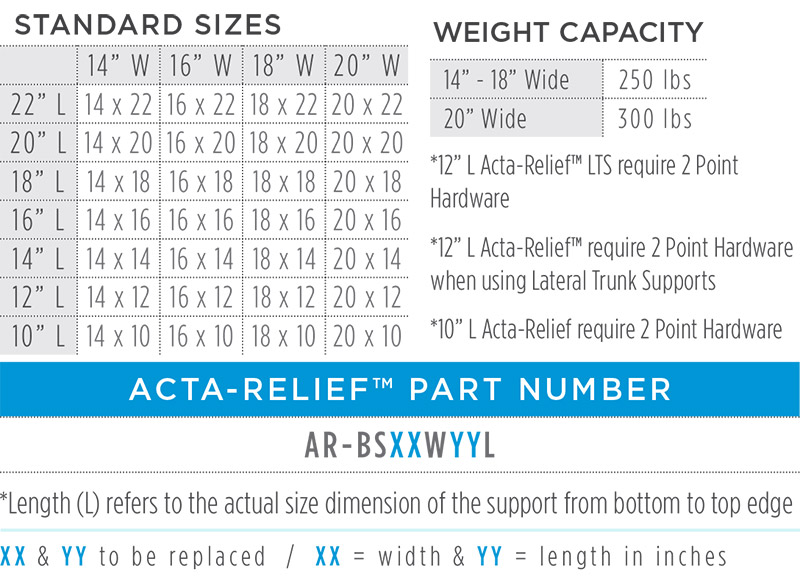

Acta-Relief Dimensions
