Custom Acta-Back®

HCPCS Coding: E2617

Fully customizable advanced back care system.
  • Back shape designed to reduce pressure while maintaining scapular and adipose tissue relief.
  • Widths begin at 10" and go up to 28" plus.
  • Heights begin at 10" and go up to 22" plus.
  • Patented Moldable Aluminum Stays for custom thoracic contouring.
Mobility Management Best Picks 2016
Mobility Management Best Picks award winner 2016
Configure & Add to Cart
Custom Acta-Back

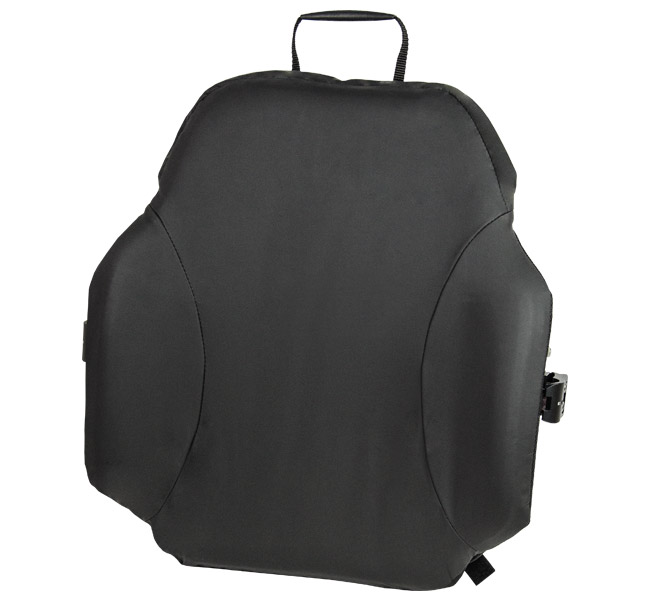

Front View
Front View
overlay
Compass Hardware Installation
Compass Hardware Installation

CUSTOM OPTIONS

  • Back Size (Width & Height)
  • Cover Material
  • Foam Selection & Thickness (6 options)
  • Moldable Aluminum Stays
  • Headrest Pad & Hardware (Moldable, Rigid/Offset, Standard)
  • Thoracic Pad & Hardware (Moldable, Rigid/Offset, Standard)
  • Lightweight Aluminum Shell
  • 4 Hardware Options
  • Custom Color
  • Custom Embroidery
  • Protective Lateral Hardware Cover
  • Adjustable Width Thoracic Supports
  • Foam in Place Kit

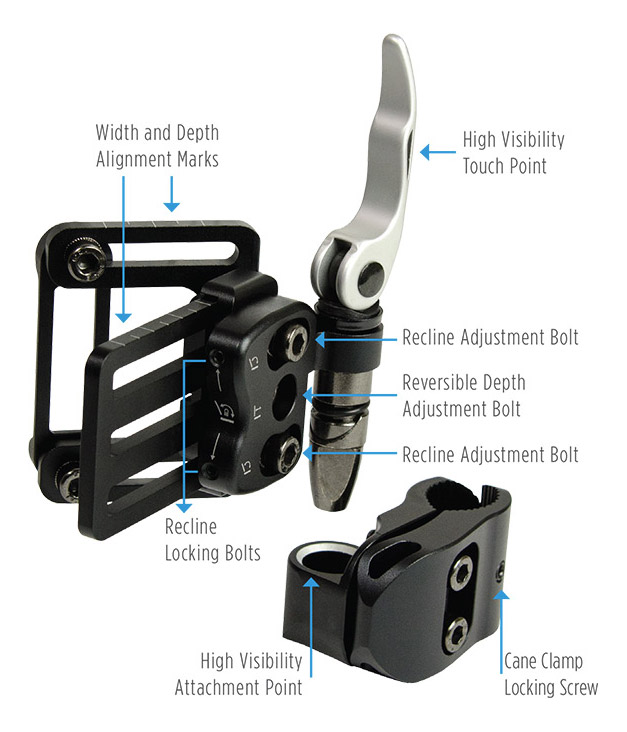

COMPASS 4 HARDWARE

  • Fully adjustable for height, depth, and angle of recline.
  • Requires only 1.5" of space on each cane for mounting purposes.
  • All adjustments can be made while the user is seated in the wheelchair, eliminating the need for multiple transfers during the fitting process.
  • Quick-release feature allows backrest to be removed vertically within seconds.
  • Hardware may be installed within minutes and fits 3/4", 7/8", and 1" tubing.
  • Positive locking feature for angle rotation.
Compass HardwareNote: hardware appearance my vary depending on back support size and style.
Compass Hardware

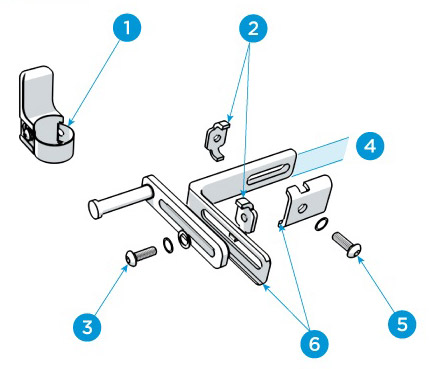

4 POINT

  • 1. Cane mount fits 5 different cane diameters. Shorter strap that comes standard fits 3/4”, 7/8” & 1” while longer strap provided (not pictured) fits 1 1/8” & 1 1/4”.
  • 2. Slot lock nut system prevents unwanted rotation.
  • 3. Single design allows for easy adjustment with minimal fasteners.
  • 4. Single slot design uses very little space, allowing other hardware to mount.
  • 5. Minimal fasteners, but strong design.
  • 6. Track systems prevent rotation, allowing features to nest together for additional stability.
  • 7. Combination of aluminum and steel for ultralight hardware.

COMPASS POWER MOUNT BRACKET

Easy Installation
8" height adjustability while user is in chair
Integrates every Acta-Series back support with the following power provider:
  • Quantum with TRU-Balance 3 Power Seating System
    (PMB-QUANTUM)
  • Permobil with Corpus 3G Power Seating System
    (PMB-PERMOBIL)
  • Quickie with 3.7 Power Seating System
    (PMB-QUICKIE)
  • Rovi with Motion Concepts Power Seating System
    (PMB-ROVI)

No Headline Given

MAUREEN TUCKER
  • 1 stars
  • 2 stars
  • 3 stars
  • 4 stars
  • 5 star
I PURCHASED THE CUSHION FOR MY HUSBAND WHO IS HAVING REHAB AND IT HAS HELPED TREMENDOUSLY WITH HIS COMFORT IN HIS WHEELCHAIR.

No Headline Given

Jerome Latimer/SW Montana
  • 1 stars
  • 2 stars
  • 3 stars
  • 4 stars
  • 5 star
My husband has not been comfortable sitting in any wheelchair since suffering a stroke in Oct, 2015. This new chair arrived today, adjustments were made and he actually fell asleep in it! I was in tears, he was so comfortable!

Submit Your Review

We'd love to hear your feedback!
This product may be covered by one or more patents or pending patent applications. See www.comfortcompany.com/ip.
