Headrest Pad & Hardware (Moldable, Rigid/Offset, Standard)
Thoracic Pad & Hardware (Moldable, Rigid/Offset, Standard)
Lightweight Aluminum Shell
4 Hardware Options
Custom Color
Custom Embroidery
Protective Lateral Hardware Cover
Adjustable Width Thoracic Supports
Foam in Place Kit

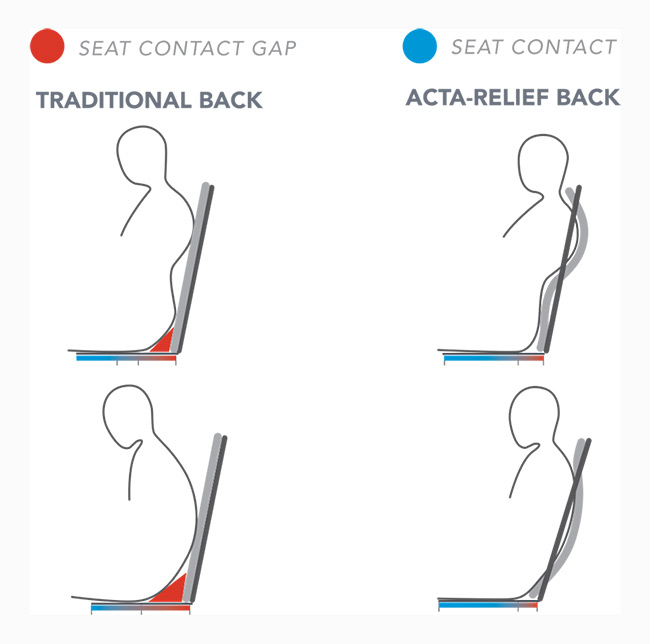

PRESSURE REDISTRIBUTION PROPERTIES
COMPASS 4 HARDWARE
Fully adjustable for height, depth, and angle of recline.
Requires only 1.5" of space on each cane for mounting purposes.
All adjustments can be made while the user is seated in the wheelchair, eliminating the need for multiple transfers during the fitting process.
Quick-release feature allows backrest to be removed vertically within seconds.
Hardware may be installed within minutes and fits 3/4", 7/8", and 1" tubing.
Positive locking feature for angle rotation.
Note: hardware appearance my vary depending on back support size and style.
4 POINT
1. Cane mount fits 5 different cane diameters. Shorter strap that comes standard fits 3/4”, 7/8” & 1” while longer strap provided (not pictured) fits 1 1/8” & 1 1/4”.
2. Slot lock nut system prevents unwanted rotation.
3. Single design allows for easy adjustment with minimal fasteners.
4. Single slot design uses very little space, allowing other hardware to mount.
5. Minimal fasteners, but strong design.
6. Track systems prevent rotation, allowing features to nest together for additional stability.
7. Combination of aluminum and steel for ultralight hardware.
COMPASS POWER MOUNT BRACKET
Easy Installation
8" height adjustability while user is in chair
Integrates every Acta-Series back support with the following power provider:
Quantum with TRU-Balance 3 Power Seating System (PMB-QUANTUM)
Permobil with Corpus 3G Power Seating System (PMB-PERMOBIL)
Quickie with 3.7 Power Seating System (PMB-QUICKIE)
Rovi with Motion Concepts Power Seating System (PMB-ROVI)
THE BOA ADVANTAGE
MICRO-ADJUSTABLE:
Each click of the Boa reel offers one millimeter of precision fit adjustment.
SECURE:
Once the Boa reel is locked into place, it stays that way.
CUSTOMIZABLE FIT:
Boa delivers smooth, even adjustment without pressure points for maximum comfort.
CONVENIENT:
The Boa closure system offers an adjustment solution free of messy straps, ratchets, and fasteners.
